Technical Datasheet
Performances
Maximum working temperature : +120°C
Minimum working temperature : -20°C
Pipe-fitting system : +95°C / -20 °C
Maximum working pressure : 10 bar

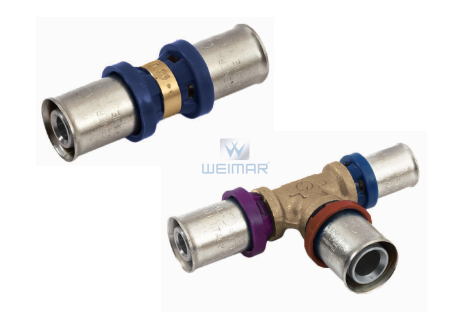

Range W5T00
Radial press fittings for multilayer pipe (with aluminum inside) or PE-X/PE-RT pipes are suitable for supply of hot and cold water in sanitary, heating and radial cooling installations.
Press fittings are compatible with several jaw profiles.
The radial press fittings am suitable for any kind of sanitary installation such as domestic, commercial, industrial, hospitality, healthcare, etc. Moreover, since the connection is permanent, it is perfectfor concealed installations.
Material Specifications
Regulations
Fittings comply with ISO 21003-3 (Multilayer piping systems for hot and cold water supply installations inside building)
Fittings also comply with 1254-7-8 law Threads comply with UNI EN 10226-1
The raw materials used are of high quality and comply with the Ministerial Decree N°174 dated 06/04/2004 concerning the materials.
The items used in fixed installations for water collector, treatment and supply, comply with 4MS, UBA List (BC group), DIN 50930/6 Dir. 2011/65/UE, 6C attachment III (RhOSII)
